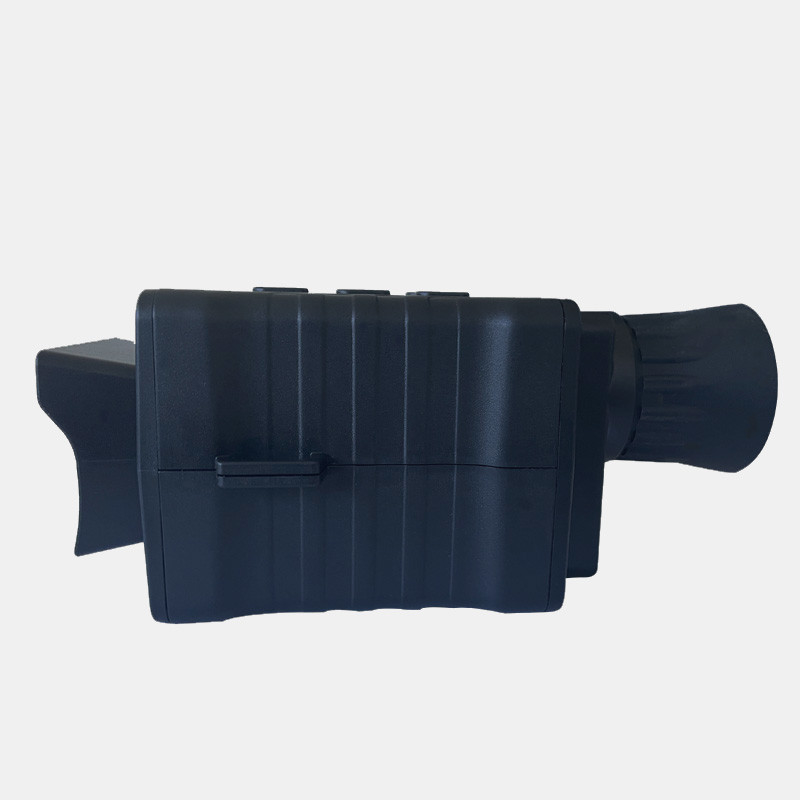

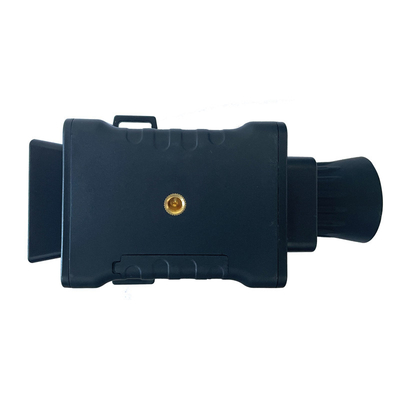

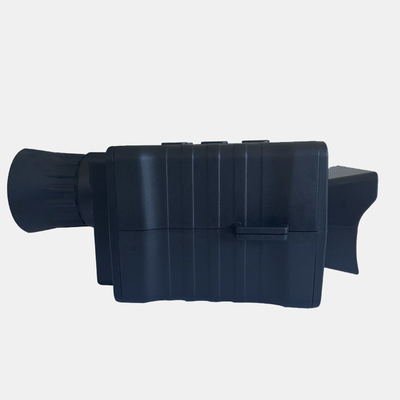

NV2000 Monocular Night Vision Built In 5000mAH Battery

     Parameters

l Photo Resolution: 36MP/32MP/30MP/24MP/20MP/16MP/12MP/10MP/8MP/5MP/3MP/VGA

l Video Size: 4K/2K/1088P/1080P/720P/VGA/QVGA

l Aperture: F 1.2 f=25mm

l Lens Angle: FOV=10°, diameter: 25mm

l Display Screen: Inner 2.0”TFT LCD

l Digital Zoom: 5X

l Storage Media: Micro SD card,Max up to 128GB

l Viewing Distance in 100% darkness: 150-200M

l Viewing Distance in weak light or day time: 3M~Infinity

l IR LED: 3W,850nm,7 levels

l USB Port: Micro USB 2.0

l Power Source : Built-in 5000mAH Lion-battery

l Operating Temperature:-20℃ to +60℃

l Storage Temperature:-30℃ to +70℃

l Dimension: approx. 150*80*67mm

l Net weight: approx.250g

      Quick Start

1: Insert Micro SD card(up to 128GB),Long presskey to 3-5s,the device will power on,After power on,adjust the object clearly through the focus wheel,and presskey, manual take photo or video record,and long presskey to shutdown

2: press key, setting work mode(photo, video,playback),on playback mode, presskey to playback, and presskey again,exit playback

3: presskey,go to menu setting parameters,press or up or down key to choice,and presskey to confirm,after settings,press key again to ESC and exit menu

4: short press key to open IR LED, press it again to add one level until 7 Levels (Max), short presskey to reduce one level until 0 level (Mini) and close IR LED

5: Long presskey,Zoom in,Max 5X, long press key,Zoom out,Mini 0X,

for the objects of long range or nearly range,Zoom in or out first ,and adjust the clearly object through the focus wheel,presskey to take photo or video record and save SD card

Note: Turn on IR LED status,can not zoom in or out,need to close IR LED first

6: Long presskey 3-5s to shutdown,take out SD card after shutdown,read the data files with card reader or connect USB cable on PC

7: Charging,connect it to DC 5V adapter or Power Bank with USB cable
